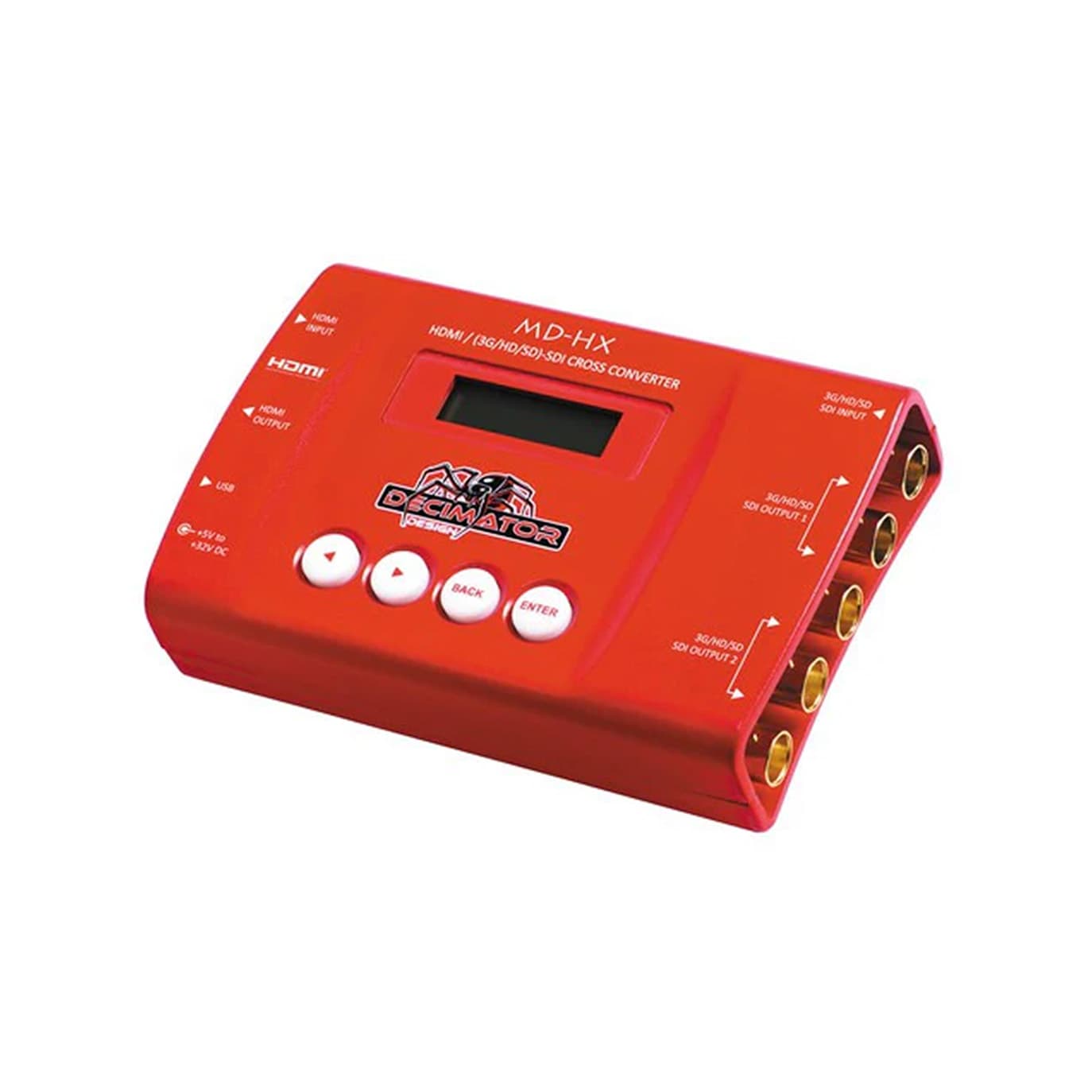

Redbyte MD-HX Decimator HDMI/SDI Cross Converter
The DECIMATOR MD-HX Miniature HDMI/SDI Cross Converter with Scaling & Frame Rate Conversion is a small, computer independent device that features both an HDMI and a 3G-SDI input, and can cross convert either signal to the other. It features a built-in scaler and frame rate converter as well, allowing you to convert the input signal to your required output standard.
The MD-HX features one HDMI output and two pairs of 3G-SDI outputs, controllable via fourteen selectable conversion modes, providing you with a variety of modes to fit your needs. This converter does not require a computer or DIP switches to control as it incorporates a small LCD screen for menu functions, and four buttons for control. It comes with a power supply with locking power cable to prevent accidental power loss during use.
14 Conversion Modes:
- SDI In to HDMI and SDI Out
- SDI In to SDI Out and HDMI In to HDMI Out
- SDI In to SDI Out and Scaled SDI In to HDMI Out
- SDI In to SDI Out and Scaled HDMI In to HDMI Out
- HDMI In to SDI Out and SDI In to HDMI Out
- HDMI In to HDMI and SDI Out
- HDMI In to SDI Out and Scaled SDI In to HDMI Out
- HDMI In to SDI Out and Scaled HDMI In to HDMI Out
- Scaled SDI In to SDI Out and SDI In to HDMI Out
- Scaled SDI In to SDI Out and HDMI In to HDMI Out
- Scaled SDI In to HDMI and SDI Out
- Scaled HDMI In to SDI Out and SDI In to HDMI Out
- Scaled HDMI In to SDI Out and HDMI In to HDMI Out
- Scaled HDMI In to HDMI and SDI Out
HDMI to SDI / SDI to HDMI
The HDMI or SDI input can be scaled and/or frame rate converted to the required standard.
- Four SD/HD/3G-SDI outputs allow the converter to be used as a 1 to 4 distribution amplifier. SDI output pair 1 can either be a copy of the SDI input (default) or the same as pair 2.
- The MD-HX incorporates an LCD and button control system. This gives you access to features that have usually require a computer. Adjusting DIP switches or having access to a computer to change a simple setting are no needed with the MD-HX.
- The audio pairs in the SDI and HDMI outputs can be rearranged as required.
- The unit incorporates a USB port for control and firmware updates.
1x MD-HX Decimator HDMI/SDI Cross Converter
1x Power Supply
